Spare Parts of An Ultasonic Antenna Embedding Machine 60Khz IC ID
Card
Description:
Ultrasonic embedding device vibrates with ultrasonic waves at
ultra-high frequency. By the conduction of the welding head and
appropriate pressure, the metal parts (such as nuts and screws) are
instantly squeezed into the reserved plastic holes and fixed at the
set depth. . When finished, the tension and torque can be compared
to the traditional strength of the mold, and the shortcomings of
injection damage and slow injection are eliminated.

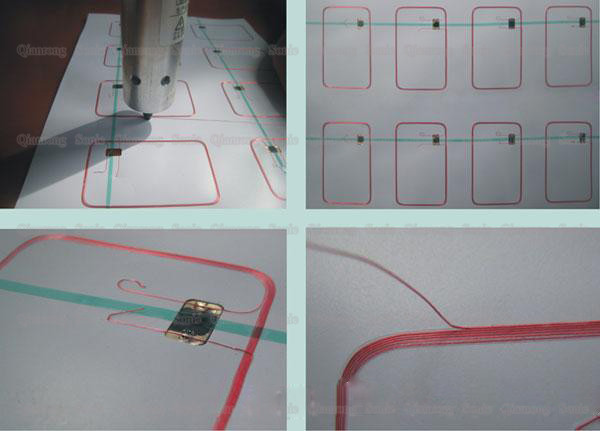

Ultrasonic smart card welder, Which is also known as smart card
antenna welding machine, smart card spot welding machine, smart
card implantable antenna machine, is a professional device for the
production of smart cards/ID cards, widely used in welding sheet
positioning, antenna implanted. In recent years, it is an important
application of ultrasonic welding.
Specifications:
| Type | QR-W60A |
| Frequency(KHz) | 60KHz |
| Trigger | External control or manual control |
| welder head | wear-resisting alloy steel above HRC55° |
| Threading hole | Φ0.3mm or Φ0.5mm |
| Power code | 2M or 5M |
| Generator | Digital generator V6.6 or analog generator ZJS-100 |
| Generator Size | 280*320*140mm(V6.6) 280*320*150mm(ZJS-100) |
| Cover dimension | Φ25X100mm |
| Cover material | Nylon or aluminum |
| Cooling way | compressed air cooling (Φ4mm conduit) |
| Speed | 0.1-0.3m/s |
| Thread fixed cycle | length 60000 m/s |
Features:
1. Ultrasonic planting system is equipped with a new version of
intelligent CNC generator, which is automatically completed by
frequency search and frequency chasing.
2. The 60K tool head has a hole diameter of 0.3mm and 0.5mm for
users of different needs.
3. All tool head threading hole outlets and welding surface
circumference are rounded to avoid wire breakage.
4. Ultrasonic transducer protection shell material is made of
aluminum alloy, which has good heat dissipation, strong pressure
resistance and good wear resistance.
5. In the ultrasonic system, the transducer and tool head are
strictly calibrated before leaving the factory. Do not disassemble
and disassemble them. After disassembling, the transducer may be
damaged.
6. If you need to rework the tool head or other special
requirements, please inform the company in advance, we can
customize it for you before leaving the factory.
