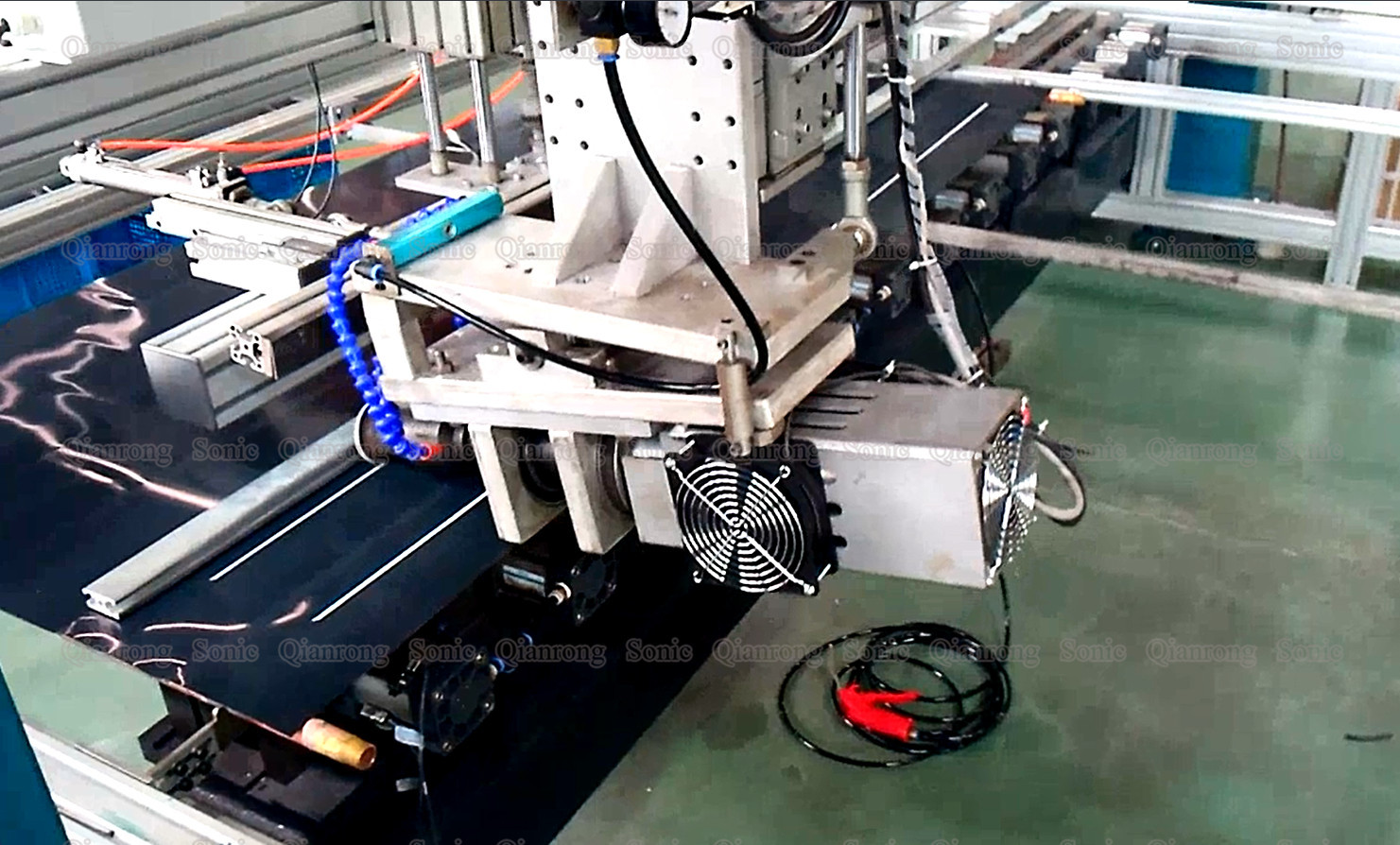

20Khz 3000w Ultrasonic Sealing Metal Welding Machine for Solar Panel Welding

Description:

Ultrasonic rolling welding machine welding principle is to generate 20KHz (or 15KHz) high-voltage, high-frequency signal from the generator, through the conversion system, the signal is converted into high-frequency mechanical vibration, applied to the workpiece of metal products, through the surface of the workpiece and in the molecule The friction between the two causes the temperature transmitted to the interface to rise. When the temperature reaches the melting point of the workpiece itself, the workpiece interface is rapidly melted, and then filled in the gap between the interfaces. When the vibration stops, the workpiece is simultaneously cooled and shaped under a certain pressure. Then, the welding is achieved.

Specifications:

Dimension of welding horn:

There are two main methods for welding aluminum-plastic composite tube aluminum sheets: 1. Plasma welding 2. Ultrasonic welding

When using ultrasonic seam welding, the main points should be noted as follows:

1. It must be a machine with automatic frequency tracking. Because the temperature of the welding position is more than 100 degrees Celsius, the frequency of the welding head and the transducer assembly must decrease when working at such temperature. If there is no frequency automatic tracking, it will be different. The temperature is frequency modulated on the machine, which is easily damaged for machines that do not track the frequency automatically.

2. For machines without frequency automatic tracking, the amplitude consistency cannot be guaranteed at different temperatures.

Ultrasonic metal welding machine amplitude parameters:

Equivalent to the temperature of the soldering iron, the amplitude is a key parameter for the material to be soldered. When the temperature is too low, the welding will not be possible. If the temperature is too high, the raw material will be burnt or the structure will be destroyed and the strength will be deteriorated. Because each company chooses a different transducer, the amplitude of the transducer output is different. After adapting the different ratios of the horn and the horn, the working amplitude of the horn can be corrected to meet the requirements. Variable amplitude, functional amplitude, stepwise amplitude variation, etc. have a great influence on the ratio, and the front-to-back area ratio is proportional to the total ratio.

20Khz 2000w Ultrasonic Sealing Metal Welding Machine for Solar Panel Welding

Hangzhou Qianrong Automation Equipment Co.,Ltd.

Is the professional manufacturer of ultrasonic research, high power ultrasonic transducer development and production in China.

Our main products are Ultrasonic Welding transducer, ultrasonic power supply, ultrasonic metal welder, ultrasonic wire antenna parts and so on. These productions are widely used in various fields, such as plastic welding, metal welding, non-woven sealing and cutting and so on.

Since Qianrong Equipment establishment, the company has always focused on customer needs. While exploring the domestic market in China, we also demonstrates our company’s ultrasonic technology to the world. Its quality and performance are well-known in the industry.

Adhering to the “focus on ultrasonic application, in good faith to win customers, to win the reputation of quality” development purpose, becoming the world’s leading supplier of ultrasonic core components, through our professional level and unremitting efforts, quality products for customers in the development of the industry to create greater value return.
