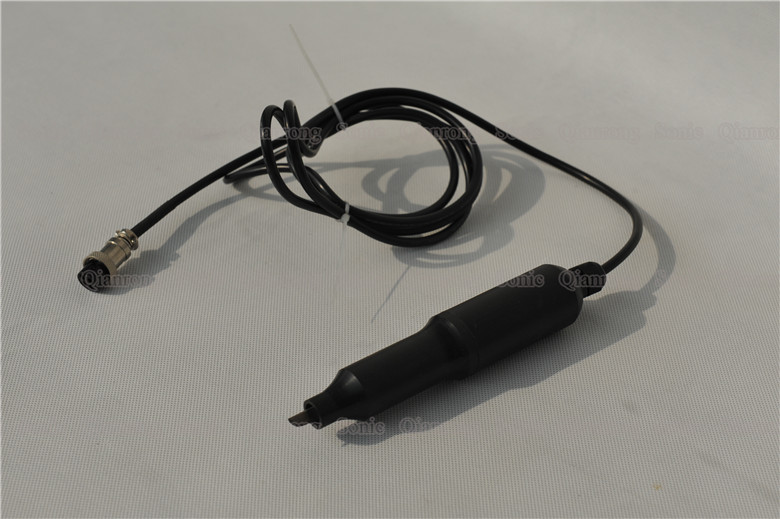

Ultrasonic Handheld 40Khz Cutter for Cutting and Sealing Fabric Edge Banding

Description:

The basic structure of the ultrasonic cutter is an ultrasonic transducer, a horn, a tool head (knife body), and a driving power source. The ultrasonic drive power source converts the commercial power into a high-frequency high-voltage alternating current and outputs it to the ultrasonic transducer. An ultrasonic transducer is actually equivalent to an energy conversion device that converts input electrical energy into mechanical energy, ie, ultrasonic waves. Its manifestation is that the transducer moves back and forth in the longitudinal direction. The frequency of the telescopic motion is equivalent to the frequency of the high frequency alternating current supplied by the driving power source. The role of the horn is to fix the entire ultrasonic vibration system and to adjust the output amplitude of the transducer. The tool head (knife body) on the one hand amplifies the amplitude and focuses the ultrasound. On the other hand, the ultrasonic wave is output, and the ultrasonic energy is concentratedly input to the cutting portion of the material to be cut by using a similar cutting edge of the cutting blade. Under the action of huge ultrasonic energy, the part softens and melts instantaneously, and the strength is greatly reduced. At this time, as long as a small cutting force is applied, the purpose of cutting can be achieved.

Specifications:

Advantages of ultrasonic cutting:

1. It can be air-cooled and water-cooled to adapt to various working conditions and environments.

2. the cutting speed is greatly improved, the efficiency is more than 10 times higher than the traditional cutting knife
3. Use high-power ultrasonic transducer as vibration component to ensure stable operation for a long time.
4. a full range of cutting tools, can also be customized according to the customer's process of cutting tools
5. can cut a variety of ordinary tools difficult to cut products, solve production and processing problems
6. can install high hardness blade, cutting blade can be replaced, reducing the cost of use
7. easy to install, use, almost no change to the original cutting process
8. high cutting precision, good cutting surface finish

Ultrasonic Handheld 40Khz Cutter for Cutting and Sealing Fabric Edge Banding
