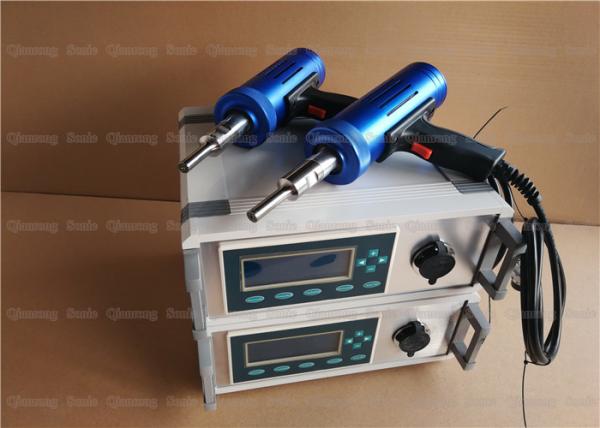

    28 Khz Ultrasonic Plastic Welding Machine For Rubber Overmolded Parts

    Ask Lasest Price
    Brand Name : QRsonic
    Model Number : QR-W28GD
    Certification : CE
    Price : Negotation
    Payment Terms : T/T, Western Union
    Supply Ability : 2000 pcs per month
    Delivery Time : 7 workdays
    • Product Details
    • Company Profile

    28 Khz Ultrasonic Plastic Welding Machine For Rubber Overmolded Parts


    28Khz Ultrasonic Welding for Rubber Overmolded Plastic Parts with Digital Power Driver


    Description:

    Ultrasonic spot welder welding principle is to convert 50/60 Hz current into 20, 28, 35 kHz electric energy through ultrasonic generator. Ultrasonic welding machine principle, fast, economical, efficient, environmentally friendly welding process, especially in the operation of thermoplastic parts and other workpieces, especially highlighting the efficiency of the work, the current principle of ultrasonic welding machine is widely used in The synthesis of plastic products and plastic materials, the synthesis of metal parts and metal materials, as well as other materials and industrial and process operations.



    Specifications:


    Item NoQR-W28GD
    Power800W
    GeneratorDigital generator
    Frequency28KHZ
    Voltage220V or 110V
    welding headAluminum or Titanium
    Gross weight13Kg


    Parameters:


    ClassificationPistol TypePen Type

    Frequency
    (Khz)

    3528282820282828
    Power(w)500300700800900300700800
    Welding Head<10mm<10mm<10mm<12mm<12mm<10mm<10mm<12mm
    Dia of shell51mm51mm51mm64mm64mm40mm45mm60mm
    The handles size100mm*45mm*32mm
    Weight0.5kg0.5kg0.5kg1.2kg1.2kg0.4kg0.5kg1.0kg
    Digital Generator--
    Analog Generator
    ApplicationABS, HIPS,PMMA,MPPOPVC,PP,PEAldehyde-resin, PCPC,PSU,PANylon, PE,PBTPVC,PP,PEAldehyde-resin, PC

    PC,
    PSU,PA

    Welding TypeRivet Welding, Spot Welding, Embossed Welding
