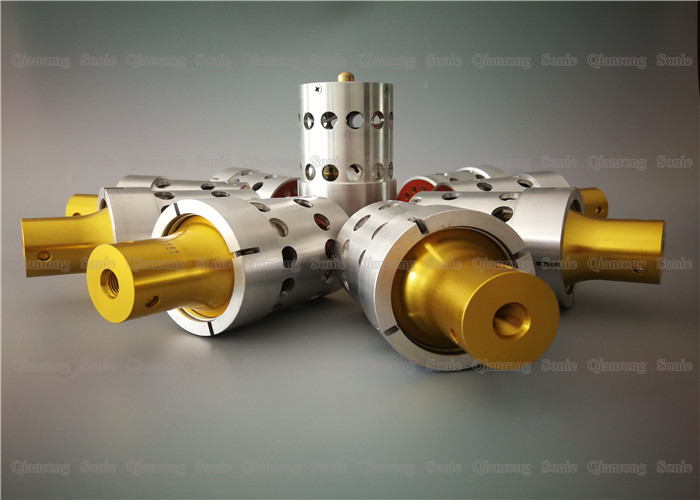

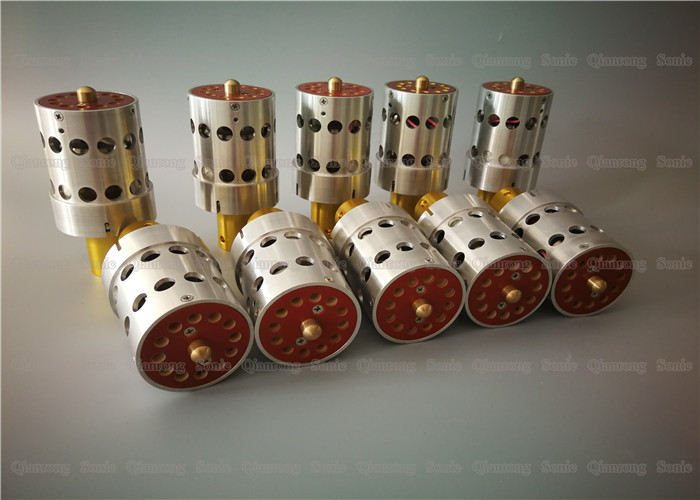

    Customized OEM Aluminum Alloy 20Khz Transducer With Gold Front Masses

    Ask Lasest Price
    Brand Name : QRsonic
    Model Number : QR-D110-3122
    Certification : CE
    Price : Negotation
    Payment Terms : T/T, Western Union
    Supply Ability : 2000pcs per month
    Delivery Time : 3 workdays
    • Product Details
    • Company Profile

    Customized OEM Aluminum Alloy 20Khz Transducer With Gold Front Masses


    20Khz Customized OEM Aluminum Alloy 20Khz Transducer with Dukane Style Gold Front Masses


    Description:


    QRsonic Is the professional manufacturer of ultrasonic research, high power ultrasonic transducer development and production in China. Our main products are transducer, ultrasonic power supply, ultrasonic metal welder, ultrasonic wire antenna parts and so on. These productions are widely used in various fields, such as plastic welding, metal welding, non-woven sealing and cutting and so on.


    We promise all of the components used in construction of these Dukane replacement converters are all new, not recovered from scrapped units. The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance.


    Specifications:


    ModelQR-D110-3122
    Frequency20 khz
    Output power2000 watt
    Joint bolt1/2-20UNF
    Ceramic disc Diameter50mm
    Qty of ceramic discs4pcs
    Capacitance11-18nf
    Amplitude10 um
    ApplicationPlastic welding machine

    Specification:


    Item No

    Connect screw (Size)


    Ceramic diameter (mm)


    Quantity of Ceramic (pc)


    Resonance frequency (khz)


    Input PowerMachine
    1-QR-BCJ201/2-20UNF506203300

    Branson

    2000 series

    2-QR-BCR201/2-20UNF506203300

    Branson

    2000 series

    3-QR-B5021/2-20UNF504202000

    Branson

    5170, 8800

    4-QR-B4021/2-20UNF40420900

    Branson

    8200, 8400

    5-QR-B8031/2-20UNF504202000

    Branson

    8700

    6-QR-B902J1/2-20UNF50420900

    Branson

    910W or IW+

    7-QR-B4THM82544080040khz Branson welders
    8-QR-B4TRM82544080040khz Branson welders
    9-QR-D201/2-20UNF50220200020khz Dukane Heavy Duty
    10-QR-D41S301/2-20UNF504202000Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260
    11-QR-D41C301/2-20UNF504202000
    12-QR-D110-31221/2-20UNF504202000
    13-QR-D110-31681/2-20UNF504202000Dukane Model 43B18
    14-QR-D41C28M83524080040khz Dukane welders
    15-QR-D41C29M83524080040khz Dukane welders
    16-QR-R3510M82543580035Khz Rinco Welders
    17-QR-R35M8*1.252523550035khz Rico Welders
    18-QR-R201/2-20UNF502201200
    19-QR-J3506M825435800
    20-QR-J3710M825437500CV231
    21-QR-J3706-W1M825437500
    22-QR-J3706-W2M832237400CV3510
    23-QR-T35M82543580035khz Telsonic Machine
    24-QR-H201/2-20UNF506203000

    Special Items can be customized.


    20Khz Customized OEM Aluminum Alloy 20Khz Transducer with Dukane Style Gold Front Masses


    Customized OEM Aluminum Alloy 20Khz Transducer With Gold Front Masses


    Customized OEM Aluminum Alloy 20Khz Transducer With Gold Front Masses

    Quality Customized OEM Aluminum Alloy 20Khz Transducer With Gold Front Masses for sale
