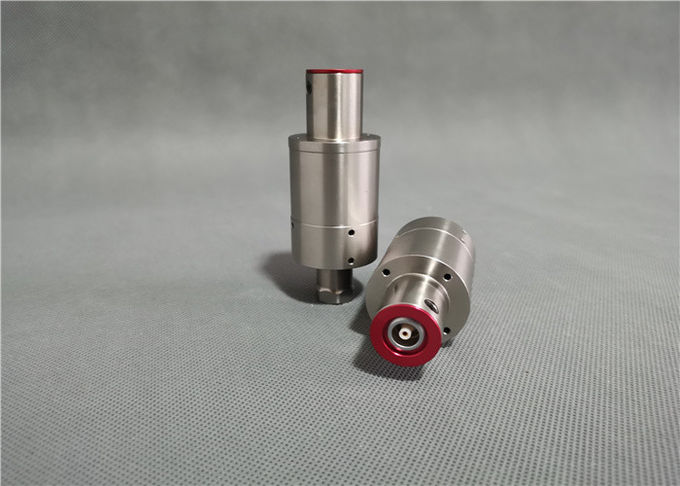

High Frequency 35Khz Ultra Replacing Telsonic Converter with Special Connect Air Plug

Description:

35Khz 1200W ultrasonic transducer, using piezoelectric ceramics, combined with titanium alloy accessories, using international advanced simulation technology combined with self-developed high-precision assembly equipment, starting from the source technology, research and development and production ensure the transducer products and application technology The stability of parameters, equipped with different generators and die welding heads, can be applied to different ultrasonic applications.

Repacement Telsonic SE3512C Konverter. Ultrasonic transducer is a device that can convert high-frequency electrical energy into mechanical energy. It is generally magnetostrictive and piezoelectric ceramic. The power output is sent to the ultrasonic generator, and then to the ultrasonic transducer. The ultrasonic derivation device can generate ultrasonic waves.

Specifications:

Specification:

Special Items can be customized.

Ultrasonic transducer parts assembly precautions:

The main parts of the ultrasonic vibration system, such as transducers, horns, tool heads, etc., are connected by a central bolt.

1. Check that the contact surface should be smooth and free of scratches. If there are any scratches, use a metallographic paper with a number of zero or more to lightly polish. It is required to smooth the defect without damaging the flatness of the contact surface.

2. Clean the screws, screw holes and contact surfaces with a volatile, non-corrosive detergent.

3. Thoroughly clean the screws, screw holes and contact surfaces.

4. All connecting screw holes should be perpendicular to the contact surface.

5. Apply a thin layer of butter or Vaseline to the contact surface before tightening. Do not apply to the connecting screws and screw holes.

6. Carefully tighten the two parts. Adjust the appropriate tightening torque according to the specifications of the connecting screws. When possible, tighten it properly.

7. If you loosen the joint surface again, you should not see any scars.

8. The amplitude of the vibration system is evenly distributed by hand, no strange sound, no local severe fever.

9. After re-opening the joint surface after working for a period of time, there should be no signs of oxidation or ablation. Otherwise, the contact here is not good, and the ultrasonic energy is seriously lost here.

High Frequency 35Khz Ultra Replacing Telsonic Converter with Special Connect Air Plug

Hangzhou Qianrong Automation Equipment Co.,Ltd.

Is the professional manufacturer of ultrasonic research, high power ultrasonic transducer development and production in China.

Our main products are Ultrasonic Welding transducer, ultrasonic power supply, ultrasonic metal welder, ultrasonic wire antenna parts and so on. These productions are widely used in various fields, such as plastic welding, metal welding, non-woven sealing and cutting and so on.

Since Qianrong Equipment establishment, the company has always focused on customer needs. While exploring the domestic market in China, we also demonstrates our company’s ultrasonic technology to the world. Its quality and performance are well-known in the industry.

Adhering to the “focus on ultrasonic application, in good faith to win customers, to win the reputation of quality” development purpose, becoming the world’s leading supplier of ultrasonic core components, through our professional level and unremitting efforts, quality products for customers in the development of the industry to create greater value return.
